Gigabit Optical Fiber Switch - 2SFP+4RJ45 Unmanaged Ethernet Switch
Professional industrial-grade fiber optic switch designed for reliable network connectivity in demanding environments with OEM factory support.
Product Overview

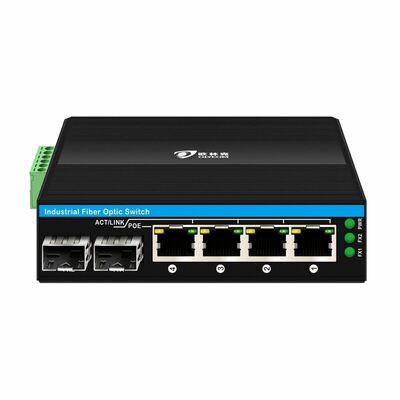

The IM-FS240GE series is a 10/100/1000Mbps industrial fiber switch featuring 2 SFP ports and 4 RJ45 ports. Engineered for industrial applications, it operates in temperatures from -40°C to +75°C with IP40 protection and meets rigorous EMC industrial standards including FCC and CE certification.
Technical Specifications
| Product Name |
10/100/1000Mbps Gigabit Optical Fiber Switch (2F+4TP) |
| Model No. |
IM-FS240GE |
| Port Configuration |
2x 100/1000Mbps SFP ports (SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40-120Km; MM: 1310nm, 2Km)
4x 10/100/1000M UTP RJ45 (MDI/MDIX auto-sensing) |
| Switching Features |
Transmission mode: Storage and forward
System bandwidth: 40Gbps (non-blocking)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb |
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 UTP (≤100m)
100/1000BASE-TX: CAT5 or above STP (≤100m)
SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km |
| LED Indicators |
Power, Network, Fiber |
| Power Supply |
12-52V DC input |
| Environmental |
Operating temperature: -40° to 75°C
Storage temperature: -40° to 85°C
Operating humidity: 10%-90% non-condensing
Storage humidity: 10%-95% non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical Information |
Shell: Corrugated metal
Safety class: IP40
Dimensions: 113.8 x 93 x 34.9mm

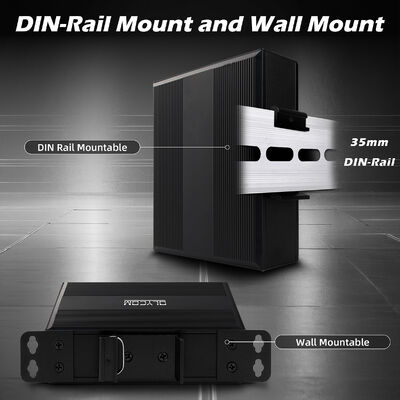

Mounting: DIN-rail |
| Warranty |
3 years |
Application Scenarios
Industrial Automation Systems
Enables stable communication between PLCs, sensors, and control systems in factory automation, ensuring reliable data transmission across production lines.
Transportation and Rail Systems
Compliant with rail traffic standards (EN 50121-4) and traffic control requirements (NEMA-TS2), suitable for deployment in intelligent transportation systems and railway networks.
Outdoor Surveillance Networks
With surge protection and wide temperature support, ideal for outdoor monitoring systems, connecting cameras and control centers over fiber networks.
Energy and Power Systems
Applicable in power substations and energy infrastructure, where stable and interference-resistant communication is essential.

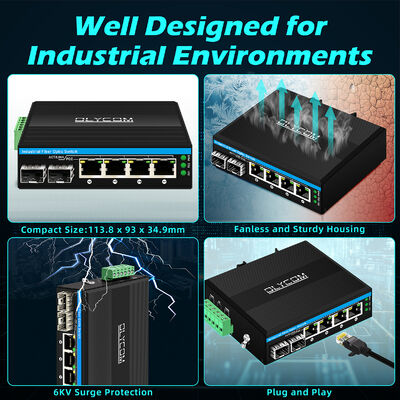

Harsh Industrial Environments
Rugged design suitable for demanding industries including:
- Mining operations
- Oil and gas facilities
- Heavy manufacturing plants

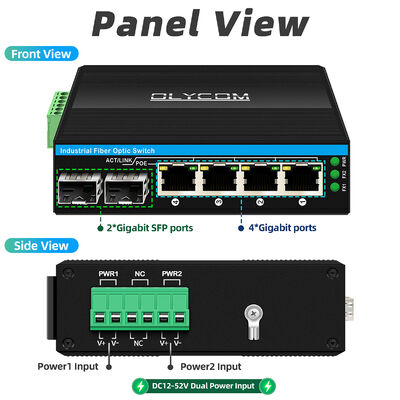

Product Dimensions
Packaging Information
- Product packaged in ESD bag with PE foam protection and outer carton
- Standard package includes main device, warranty card, and user manual
- Single unit box dimensions: 23×16.5×5.8cm
- Bulk packaging: 40 units per box (67×33×47cm)
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer (factory) specializing in industrial Ethernet switches and fiber optic communication products. We provide direct factory supply, ensuring stable quality, competitive pricing, and reliable delivery.
What environments is this industrial switch suitable for?
This switch is designed for harsh industrial environments, supporting operating temperatures from -40°C to +75°C, and is suitable for applications such as industrial automation, transportation systems, and outdoor surveillance.
What transmission distance does the fiber port support?
The transmission distance depends on the SFP module used, supporting short to long distances (up to 120 km) to meet different network deployment requirements.
Does this switch support industrial protection and reliability standards?
Yes, it features IP40 protection, 6KV surge protection, and complies with multiple industrial EMC standards, ensuring stable operation in environments with electrical interference.
Can you provide OEM or customization services?
Yes, as a factory, we support OEM/ODM services, including labeling, packaging, and customized configurations based on project requirements.
