| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (1F+8TP) |
|---|---|
| Model No. | IM-FP188GE |

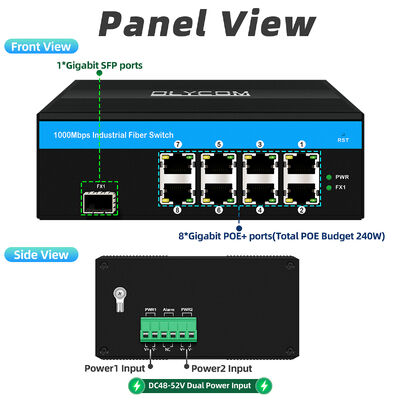

| Port Configuration | 1x 1000Mbps SFP ports (SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40-120Km; MM: 1310nm, 2Km; 850nm, 500m) 8x 10/100/1000M UTP RJ45 (Support MDI/MDIX auto-sensing) |
| Switching Features | Transmission mode: storage and forward System bandwidth: 40Gbps (non-traffic jam) Forwarding rate: 14.88Mpps MAC: 4K Packet buffer size: 1.75Mb |
| Network Media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair (≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair (≤100m) SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km |
| LED Indicators | Power, network, fiber |
| Power Supply | POE input voltage: 48V (max 52V) Single PoE output power: 30W (port 1-8) Total budget: 240W PoE output voltage: 48V |
| Environment | Working temperature: -40°C to 75°C Storage temperature: -40°C to 85°C Working humidity: 10% to 90%, non-condensing Storage humidity: 10% to 95%, non-condensing |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety | CE Mark, commercial CE/LVD EN60950 |

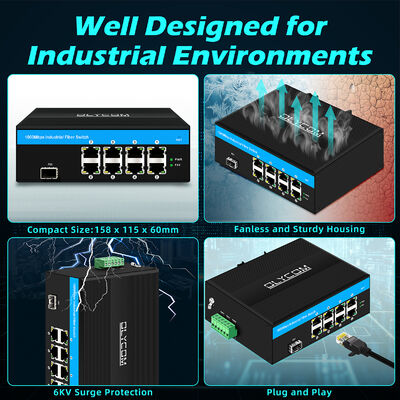

| Mechanical Information | Shell: Corrugated metal shell Safety class: IP40 Dimension: 158 x 115 x 60mm Mounting method: DIN-rail/Wall mounting |
| Warranty | 3 years |
