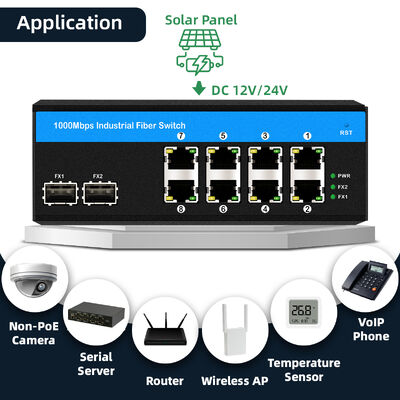

Gigabit 8 Port Solar Poe Switch DC12-48V Unmanaged Poe Switch 240W
for Solar Power System or Vehicle
Key Features of Gigabit 8 port Solar PoE Switch:
Specification of Unmanaged PoE Switch
|
Product Name |
10/100/1000Mbps Industrial POE Fiber Switch (2F+8TP) |
|
Model No. |
IM-FP288BGE |
|
Port |

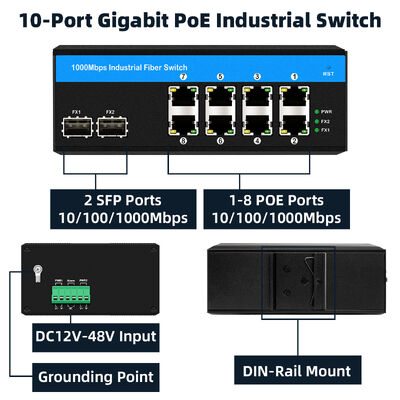

2x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Switching features |
Exchange capacity: 20Gbps Packet forwarding rate: 14.8Mpps MAC address table: 4K Swap delay: <5μs Transmission method: store and forward |
|
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
|
LEDs |
Power, network, fiber |
|
Power supply |

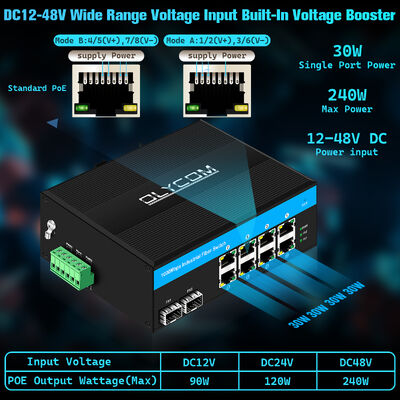

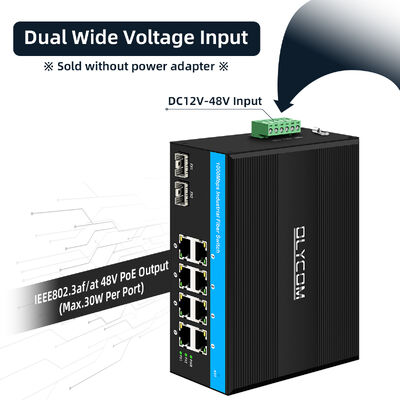

POE power supply input voltage:12V- 48VDC 12VDC input: 90W output MAX totally 24VDC input: 180W output MAX totally 48VDC input: 240W output MAX totally Single PoE power supply output power: 15.4W/30W(port 1~8) |
|
Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
|
Safety |
CE Mark ,commercial CE/LVD EN60950 |
|
Mechanical information |

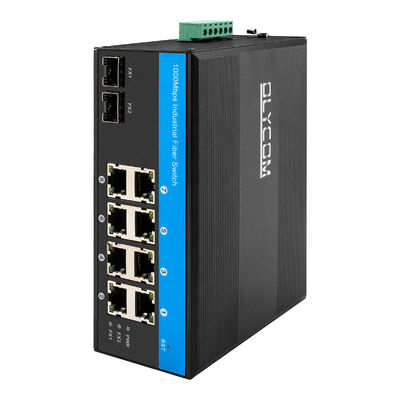

Shell:Corrugated metal shell Safety class:IP40 Dimension:167x 125 x 60mm Mounting method:Din-rail mounting |
|
Warranty |
3 years |
Packing box of Din rail unmanaged switch:
FAQ:
1. Q: How does this Industrial 10 Ports Gigabit POE Fiber Switch compare to other standard POE switches?
A: This 10 port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.
2. Q: Does this industrial 10 ports PoE switch support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
3. Q: Is it a managed industrial network switch?
A: It is unmanaged industrial network switch and no need any setting. It is plug and play, easy to use.
4. Q: What's is the PoE Pin Assignment of this Industrial 6 Ports POE Fiber Switch?
A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).
5. Q: Can i use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this industrial 6 port PoE switch. The industrial 6 port PoE switch will provide data only, and don't provide power any more.
