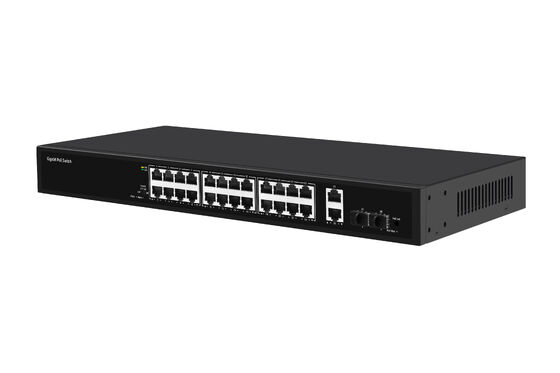

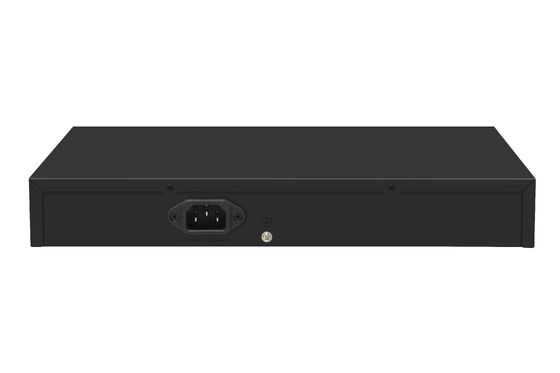

Olycom 24 Port Gigabit CCTV PoE Switch
Key Features
Specification
|
Product Name |
28 Port 10/100/1000Mbps Rack Type Ethernet PoE Switch |
|
Port |
24 Port 10/100/1000M PoE + 2 Gigabit Ethernet Uplink + 2 Gigabit SFP |
|
Switching Capacity |
56Gbps |
|
Throughput |
41.644Mpps |
|
Packet Buffer |
6M |
|
MAC Address |
8K |
|
Jumbo Frame |
9216Kbytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Network protocol |
IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical Fiber) IEEE 802.3x: Flow Control |
|
PoE Protocol |
IEEE802.3af(15.4W) IEEE802.3at(30W) |
|
PoE Wiring |
1/2(+), 3/6(-) |
|
PoE Budget |
400W |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge) |
|
Network Medium |
10Base-T: Cat3,4,5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
Optical Media |
Multi mode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
|
Certification |
CE/FCC/RoHS |
|
Working Environment |
Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Power |
Power Input Voltage: AC100-240V |
|
LED Indicators |
PWR(Power indicator) On: power on
1-28 ACT(Link&Data) On: Connected Off: Disconnected Flashing: Data Transmitting
1-24 1000M(Yellow Light) On: PoE power supply is normal Off: PoE not powered
PoE Max PoE power light Off: PoE power usage is less than 90% Flashing: PoE power usage of 90%≤ P≤ 95% On: PoE power is used at 95%<P<100%
Mode DIP Switch light On: Extend on Off: Extend off
PoE Led Key Dual color light selection Default green (link data), Switch yellow light (PoE) |
|
Extend DIP Switch |
OFF: Normal mode, all interfaces can communicate with each other The transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
ON: Link extension mode, 17-24 ports force 10M, link 250M (enable PoE watchdog), The port AI mode is enabled |
Introduction
It adopts high-quality and high-speed network intelligent and PoE chip
This PoE switch has 24 port 10/100/1000M PoE + 2 Gigabit Ethernet Uplink + 2 Gigabit SFP enjoying
power the devices that comply with the IEEE802.3af or IEEE802.3at standards
transmit only data to non-PoE devices
With simple and convenient installation, maintenance methods and rich business features, it helps users build a safe and reliable high-performance network
It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband
It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools
Dimension
Packing Information
Shipping box information(Below information is approximately accurate)
Product size: 440*205*44mm
Inner box size: 500*290*85mm
Product weight: 2.86Kg
Packing weight: 3.39Kg
Master box size: 520*445*310mm
Packing quantity: 5Pcs
Packing weight: 17.95Kg
Remark
Accessories(optical module, patchcord etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Power adapter is included in BOTH the packing box AND unit pricing
