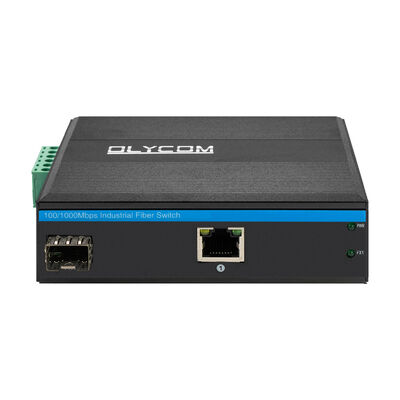

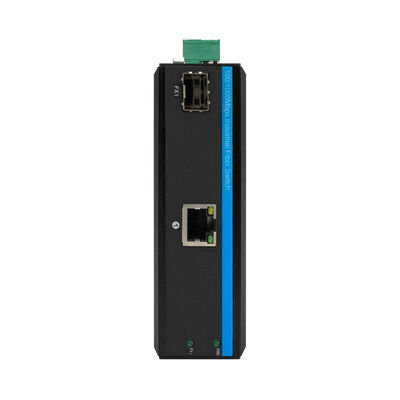

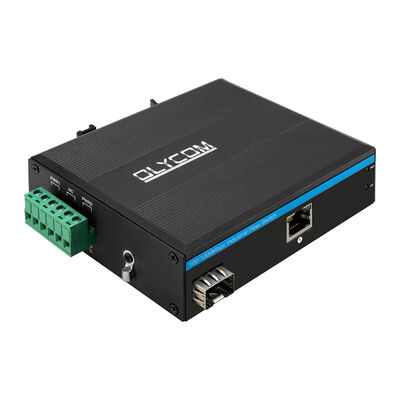

10/100/1000Mbps Mini Optic Fiber Converter with POE function
stable transmission industrial network switch
Key Features of Mini Optic Fiber Converter
Specification of Industrial Fiber Media Converter
|
Product Name |
10/100/1000Mbps Industrial POE Fiber Media Converter (1F+1TP) |
|
Model No. |
IM-PC111GE |
|
Port |
1 x 100/1000Mpbs fiber port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M Flash size: 16M |
|
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) Fiber port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
|
LEDs |
Power, network, fiber |
|
Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1) (802.3at standards required special instructions) |
|
Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
|
Safety |
CE Mark ,commercial CE/LVD EN60950 |
|
Mechanical information |
Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
|
Warranty |
3 years |
Application
Packing of unmanaged switch
| PACKING LIST | CONTENT | QTY | UNIT |
| 2-port gigabit industrial network switch | 1 | SET | |
| User Manual | 1 | PC | |
| Warranty Card | 1 | PC | |
| Removable Terminal Block | 1 | PC | |
| Note: Industrial POE Switch does not include the power supply and SFP module. | |||
FAQ
1. How are the indicators working?
A: This series share uniform indicator descriptions.
PWR: power
Fiber: FX1/FX2
Copper orange: PoE indicator
On:PoE is working
Off:PoE is not working or this is Non-PoE device
Copper green: Link/Act indicator
On:transmission is normal
Off:transmission is NOT normal
2. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.
3. What installation method does it support?
A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.
4. Can I have my logo on the device?
A: Yes, we are an OEM manufacturer.
Please just send your logo in PS/AI format, we will take care of the rest.
5. Can you help write the label content?
A: Yes,please let us know if you need to put your model name/logo/description on the label.
The standard language is English. If this is about some different languages like Korean, Italian or Russian, please just send the accurate format, we will copy and paste.
